124mm 57100-4h000 Hyundai H1 Power Steering Pump Hydraulic 16CM

Place of Origin CHINA
Brand Name NEWAIR
Certification ST16949
Model Number 57100-4H000
Minimum Order Quantity 1-100pcs
Price 40$~50$
Packaging Details Neutral Packing/Brand Packing/Customized
Delivery Time 1-3work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month
Product Details
Name Power Steering Pump Material Aluminum
Pulley With V-ribbed Belt Pulley Power Source Hydraulic
OE.NO 57100-4H000 Model FOR HYUNDAI H1
Engine D4CB Diameter Of Pulley 124mm
High Light

124mm Hyundai H1 Power Steering Pump

,

57100-4h000 Hyundai H1 Power Steering Pump

,

16CM power steering pump hydraulic

Leave a Message
Product Description

H1 STEERING PUMP FOR HYUNDAI H-1 GRAND STAREX D4CB 2.5L 57100-4H000

STEERING PUMP FOR GRAND STAREX

57100-4H000 FOR HYUNDAI H-1 D4CB 2.5L

Product Information:

1 Hydraulic Steering Pump

2 Model: FOR HYUNDAI H-1 GRAND STAREX D4CB

3 Engine:D4CB



BRAND NEWAIR
WARRANTY 12MONTHS
MOQ 1PCS
ENGINE D4CB
SIZE 16*14*16CM
Diameter 124mm
Year 2008- 2009- 2011-

FAQ:

Solution to noise of booster pump:

Product commissioning



1 After the product is installed, add the hydraulic oil as required above, start the engine, and

remember not to turn the direction in a hurry, first idle for tens of seconds, then lightly press

the accelerator, slowly accelerate to 2000 rpm, and then lower to idle speed, repeatedly work

for several times, lasting for 2 minutes, left and right, and finally turn the steering wheel left and

right (remember not to beat the direction, otherwise it is easy to damage the booster pump )

Exhaust the air in the steering system until there is no bubble and the abnormal sound due to

air entering the pump disappears.



2 During commissioning, observe whether the oil of the power steering pump is sufficient. If not, add it.



3 During commissioning,pay attention to observe whether there is leakage in the steering system, and discharge it in time if any.


4 During commissioning, pay attention not to beat the direction, including daily use. Otherwise, it is very easy to damage the internal parts of the booster pump, causing excessive wear and failure of the product and affecting the service life of the product.



5 The noise may be produced during the initial installation of the product. The main reason maybe the air entering. It is necessary to run in several times to exhaust the air in the booster  pump. If the original hydraulic oil has dirt or the filter element is blocked, it will also cause noise. Please change the hydraulic oil and filter element first. After running in several times, check the booster oil in the booster pump oil pot again to see if there is any loss, if so, add it. For other faults, please refer to "common faults and troubleshooting" in the manual.



6  The newly installed power steering pump shall not work at full load immediately, and shall be operated at no load for a period of time, so as to check the running in condition of the power steering pump and exhaust the incoming air.

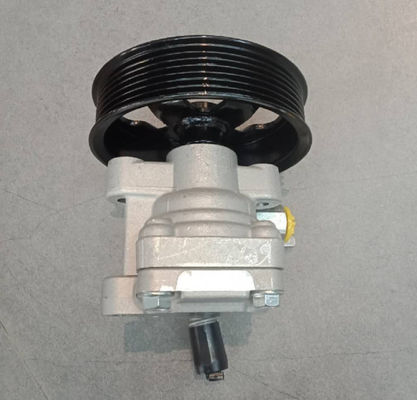

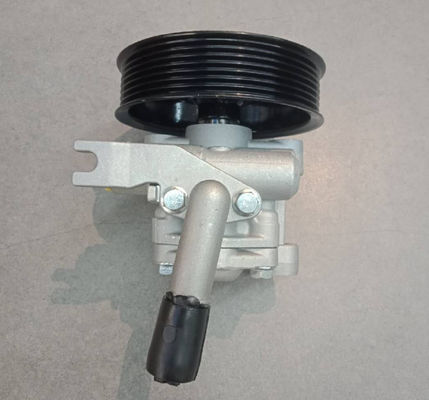

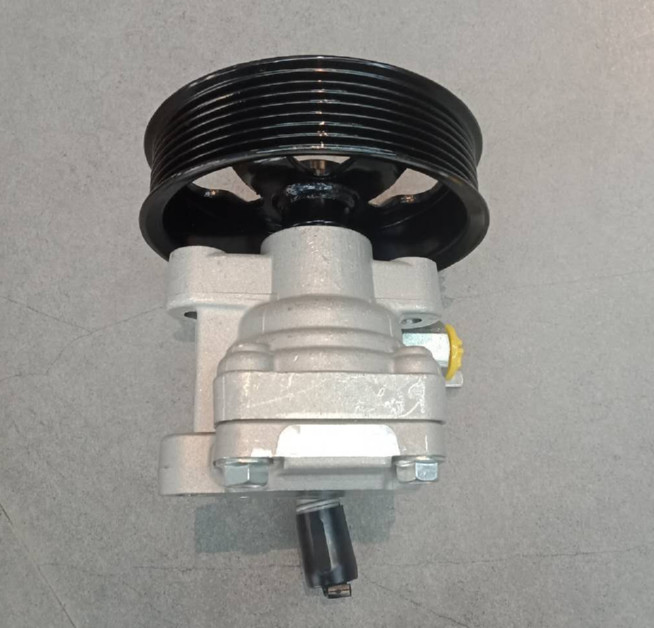

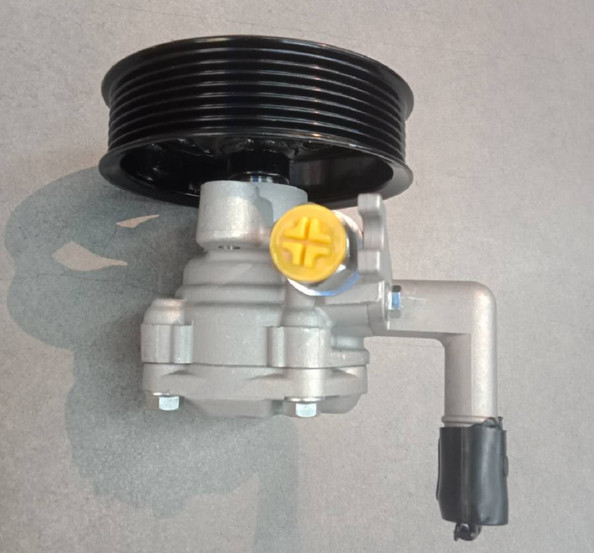

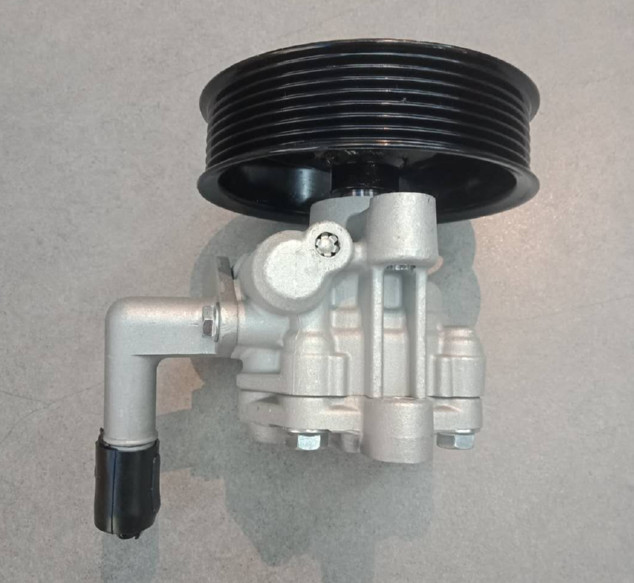

Product Picture

124mm 57100-4h000 Hyundai H1 Power Steering Pump Hydraulic 16CM 0124mm 57100-4h000 Hyundai H1 Power Steering Pump Hydraulic 16CM 1
