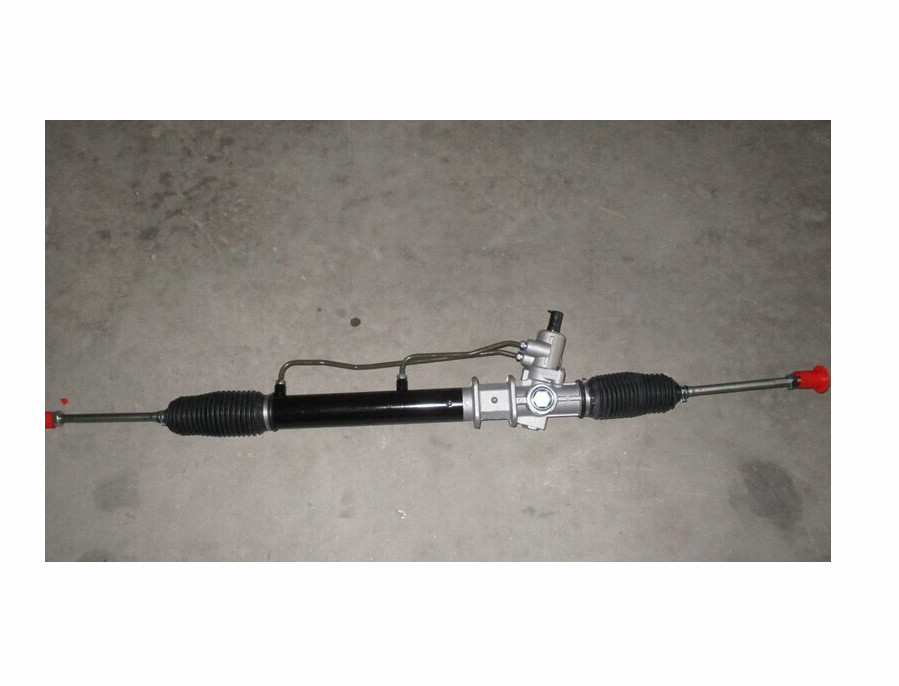

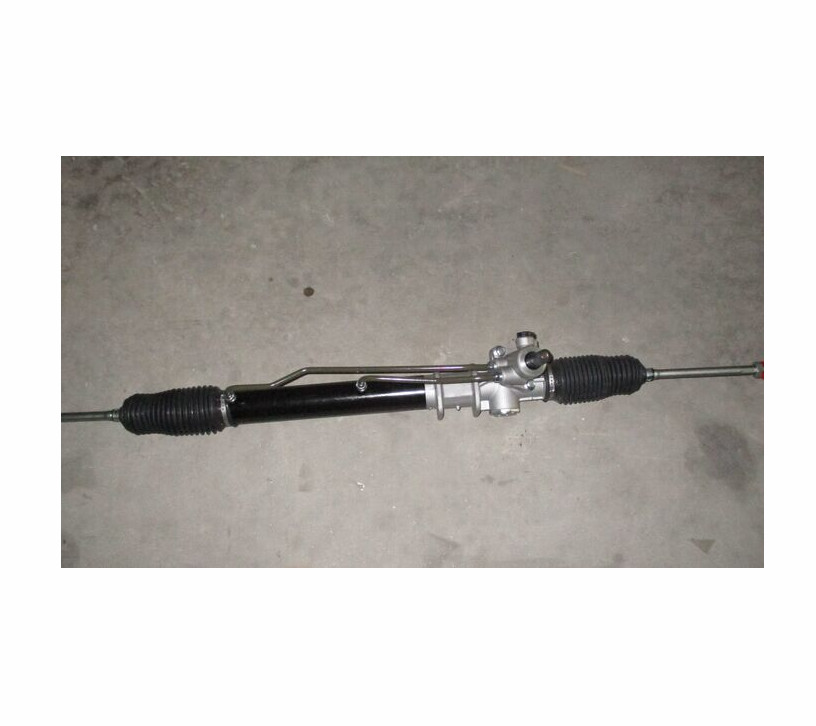

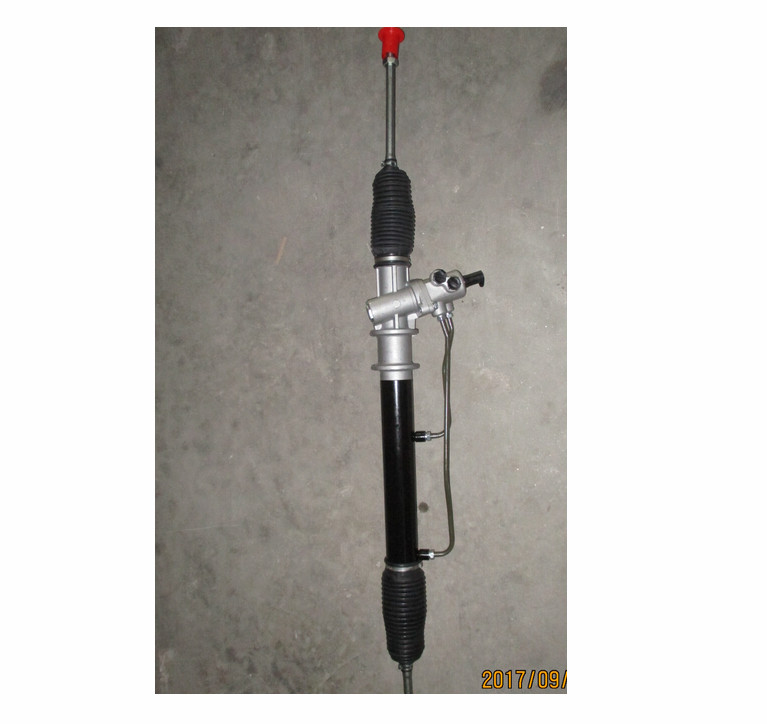

Hydraulic Steering Rack For Hyundai H100 Porter 57705-43011 Oem Parts
Left Hand Drive Steering Rack And Pinion Assy For Hyundai H100 Porter 57700-43000 Oem Parts
Some Information About Steering Rack:
1. The mechanical hydraulic power steering system is generally composed of hydraulic pump, oil pipe, pressure and flow control valve body, V-shaped transmission belt, oil storage tank and other components.
2. This system must work regardless of whether the vehicle is steering or not, and when the vehicle speed is low in large steering, the hydraulic pump needs to output more power to obtain a greater boost. Therefore, resources are also wasted to a certain extent. It can be recalled: driving such a car, especially when turning at low speed, feels that the direction is heavier and the engine is more laborious. Also, due to the high pressure of the hydraulic pump, it is easier to damage the booster system.
In addition, the mechanical hydraulic power steering system is composed of hydraulic pumps, pipelines and cylinders. In order to maintain pressure, the system must be in working condition regardless of whether steering assistance is required, and the energy consumption is high, which is also one of the reasons for the consumption of resources.
Generally, economical cars use mechanical hydraulic power assist systems.
1, Steering gear oil leakage
1) Mainly due to oil leakage from the upper cover (oil leakage at the small shaft connected to the ten bytes and at the two ends of the steering gear.
- Troubleshooting: Whether the high-pressure oil pipe joint is tightened and whether the joint seal ring is aging and damaged, so as to avoid misjudgment due to oil leakage at the high oil pipe interface.
2, Excessive free travel and noise
Please check the following troubleshooting
Whether the connection between A steering wheel and steering column is loose.
Whether the connection between B ten bytes and steering column, ten bytes and direction machine is loose.
Whether the tie rod (inner ball head) of the C direction machine is loose, and whether the outer ball head is corroded.
The abnormal sound when turning is generally a mechanical part. During the inspection, you can turn left and right to observe the sound of the part for dis-assembly and inspection.
3, The steering wheel has a heavy fault
If you encounter a heavy descent in the direction, especially in both directions, it is heavy. You should find the reason from two aspects:
On the one hand, find the reason for turning to the mechanical part. If there is no problem with the mechanical part, then find the reason for the steering assistance
4, Some common causes of machinery are:
Relevant connecting parts (ten bytes, inner and outer ball heads of the tie rod, ingot beam) are loose, deformed, corroded
