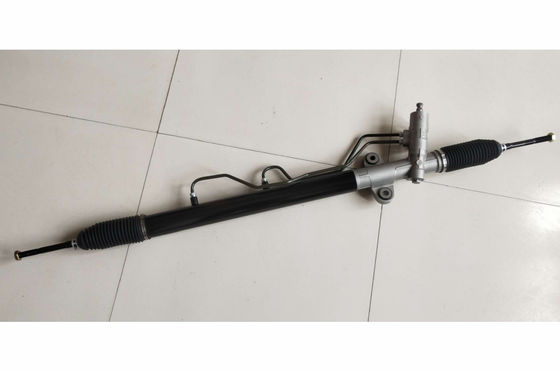

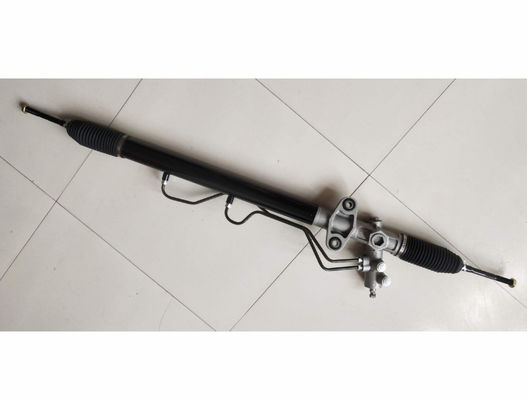

0k52y-32-110a 50.79in Kia Sedona Steering Rack Hydraulic 3.5l 2002 Lhd

Place of Origin CHINA
Brand Name NEWAIR
Certification ST16949
Model Number 0k52y-32-110a
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Neutral Packing/Brand Packing/Customized
Delivery Time 1-3work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month
Product Details
Material Aluminum Color Silver
Power Type Hydraulic Weight 10kg
Type Rack-and-pinion Steering Gear Warranty 12months
High Light

0k52y-32-110a Kia Sedona Steering Rack

,

50.79in Kia Sedona Steering Rack

,

3.5l Hydraulic Power Rack And Pinion

Leave a Message
Product Description

0k52y-32-110a 50.79in Kia Sedona Steering Rack Hydraulic 3.5l 2002 Lhd 0Hydraulic Steering Rack For Kia Sedona 3.5l 2002 0k52y-32-110a Lhd

  • Aluminum
  • 10.81
  • 274.50
  • 0.69
  • 17.40
  • 1.06
  • 27.00
  • 2
  • Rack and Pinion, Kit, Instruction Sheet
  • M14 x 1.5
  • New
  • 50.79
  • 1290.00
  • M16 x 1.5
  • 2.17
  • 55.00
  • Inner
  • 3.05
BRAND NEWAIR
WARRANTY 12MONTHS





According to the symptoms of broken car steering gears, analyze and troubleshoot the steering gears:

Steering gear leaking

The main reason is the oil leakage of the upper cover (oil leakage at the small shaft connected to the ten-byte, and the dust cover at both ends of the steering gear.

Troubleshooting: Whether the high-pressure oil pipe joints are tightened, whether the joint sealing ring is aging and damaged, so as to avoid misjudgment caused by oil leakage at the high oil pipe joints.
The free stroke is too large and there is no sound

Please check and troubleshoot the following first

A. Whether the connection between the steering wheel and the steering column is loose.

Whether the connection between the B ten-byte and the steering column, and the ten-byte and the steering machine is loose.

Whether the tie rod (inner ball head) of the C direction machine is loose and whether the outer ball head is corroded.

Abnormal noise when turning is usually the mechanical part. During inspection, you can turn left and right to observe the noise part for disassembly and inspection.

The steering wheel has a serious failure

If you encounter a heavy directional landing, especially if the direction is heavy on both sides, you should find the reason from two aspects:

On the one hand, look for the reason for the mechanical part of the steering. If there is no problem with the mechanical part, then look for the reason for the steering assist.

Hydraulic steering gear failure:

Generally it is the internal cause of the steering machine (assistance failure)

In practice, the failure of turning briskly in one direction and turning heavy in the other direction often occurs. This is generally due to the leakage of the seal that is responsible for sealing the high-pressure chamber on one side.

Such as steering disc rod sealing ring, oil passage tight ring on the circumference of the piston, etc. There is also a situation that should be paid attention to, that is, the rotation is heavy, and the limit valve on one side is not tightly closed. The poorly closed may be improperly adjusted, so Most of the limit valve is in the normally open position, or the valve and the valve seat are not tightly closed. More stunned conditions are caused by the failure of the two "o"-shaped sealing rings on the limit valve.

Sometimes it happens that when turning in a certain direction, it is very light from beginning to end, and when turning in another direction, it starts to be very light. Every time you hit a certain position, the direction will suddenly become heavy. This kind of failure is generally speaking. It is due to improper adjustment of the limit valve in this direction, so that when the wheel has not reached the limit position, the limit valve opens to unload, and the direction is immediately heavy. In case of this failure, just re-cut the limit valve according to the previous section Just adjust
