ST16949 56500-1J100 LHD Steering Rack , 56500-1J100 Steering Rack Hyundai I20

Place of Origin CHINA
Brand Name NEWAIR
Certification ST16949
Model Number 56500-1J100
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Neutral Packing/Brand Packing/Customized
Delivery Time 1-3work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month
Product Details
Name Power Steering Rack Material Aluminum
Power Source Merchanic OE.NO 56500-1J100
Model FOR Hyundai Accent Warranty 12months
High Light

ST16949 LHD Steering Rack


56500-1J100 LHD Steering Rack


56500-1J100 Steering Rack Hyundai I20

Leave a Message
Product Description

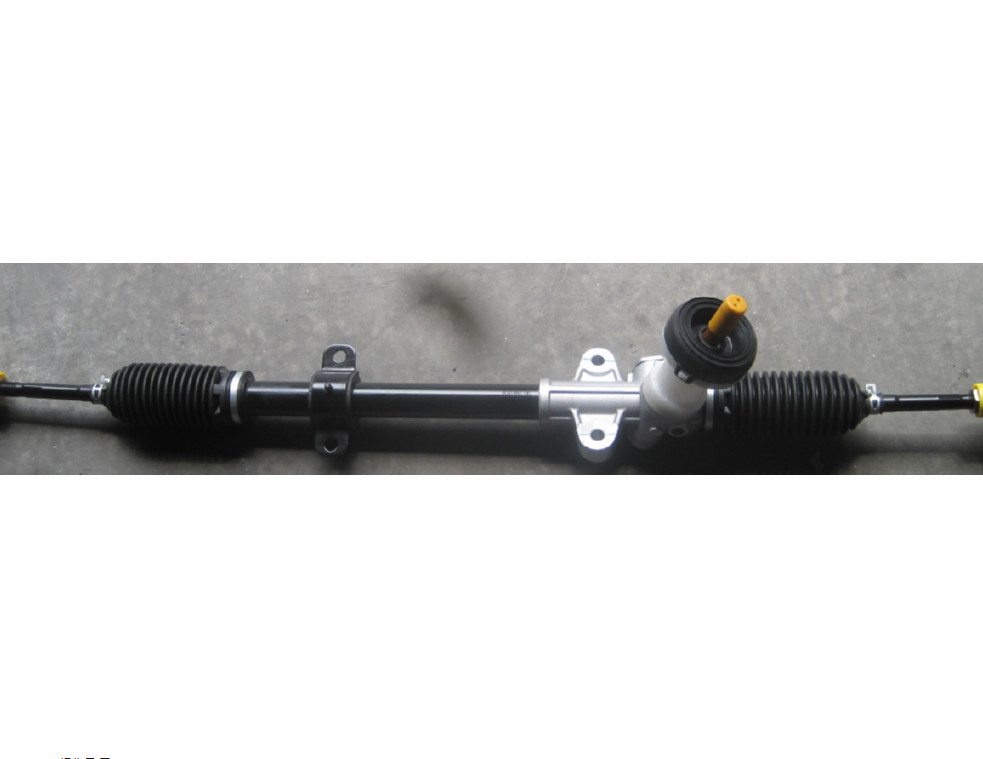

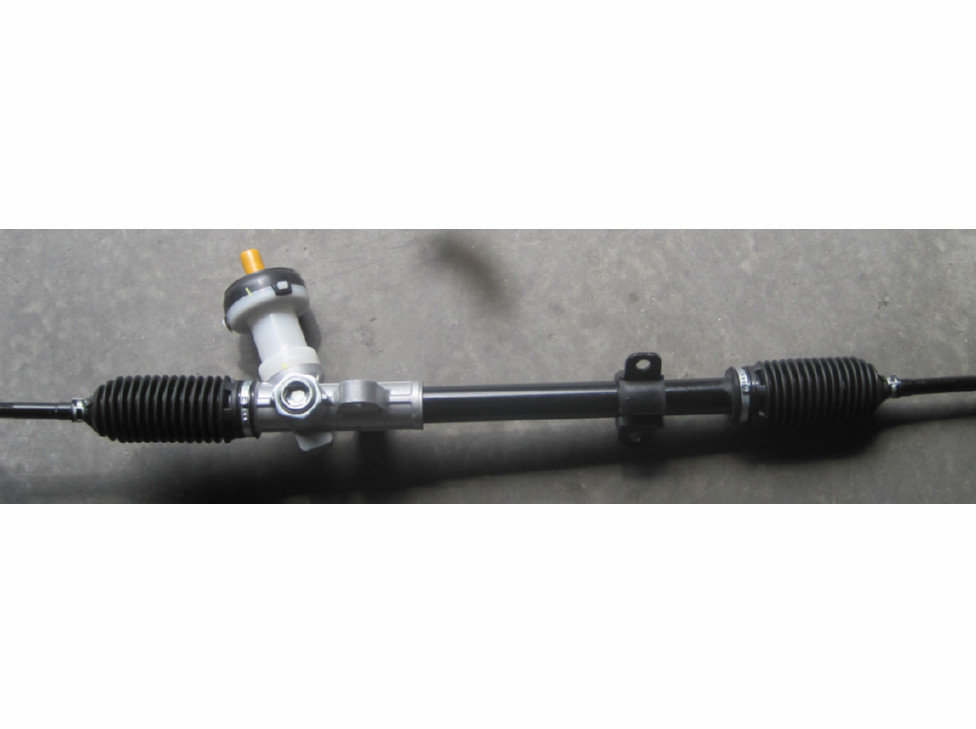

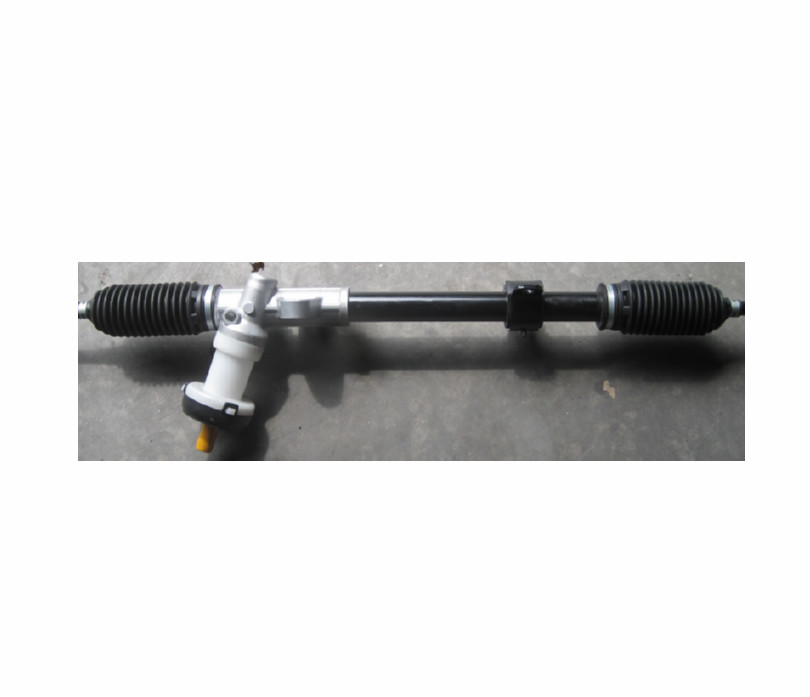

Left Hand Drive Steering Rack And Pinion Assy For Hyundai İ20 2012-2014 56500-1J100

SIZE Oem standard




Some Information About Steering Rack:


1. The mechanical hydraulic power steering system is generally composed of hydraulic pump, oil pipe, pressure and flow control valve body, V-shaped transmission belt, oil storage tank and other components.
2. This system must work regardless of whether the vehicle is steering or not, and when the vehicle speed is low in large steering, the hydraulic pump needs to output more power to obtain a greater boost. Therefore, resources are also wasted to a certain extent. It can be recalled: driving such a car, especially when turning at low speed, feels that the direction is heavier and the engine is more laborious. Also, due to the high pressure of the hydraulic pump, it is easier to damage the booster system.
In addition, the mechanical hydraulic power steering system is composed of hydraulic pumps, pipelines and cylinders. In order to maintain pressure, the system must be in working condition regardless of whether steering assistance is required, and the energy consumption is high, which is also one of the reasons for the consumption of resources.
Generally, economical cars use mechanical hydraulic power assist systems.

ST16949 56500-1J100 LHD Steering Rack , 56500-1J100 Steering Rack Hyundai I20 0



teering gear

1, Steering gear oil leakage


1) Mainly due to oil leakage from the upper cover (oil leakage at the small shaft connected to the ten bytes and at the two ends of the steering gear.


  • Troubleshooting: Whether the high-pressure oil pipe joint is tightened and whether the joint seal ring is aging and damaged, so as to avoid misjudgment due to oil leakage at the high oil pipe interface.


2, Excessive free travel and noise


Please check the following troubleshooting


Whether the connection between A steering wheel and steering column is loose.

Whether the connection between B ten bytes and steering column, ten bytes and direction machine is loose.

Whether the tie rod (inner ball head) of the C direction machine is loose, and whether the outer ball head is corroded.


The abnormal sound when turning is generally a mechanical part. During the inspection, you can turn left and right to observe the sound of the part for dis-assembly and inspection.


3, The steering wheel has a heavy fault


If you encounter a heavy descent in the direction, especially in both directions, it is heavy. You should find the reason from two aspects:


On the one hand, find the reason for turning to the mechanical part. If there is no problem with the mechanical part, then find the reason for the steering assistance


4, Some common causes of machinery are:


Relevant connecting parts (ten bytes, inner and outer ball heads of the tie rod, ingot beam) are loose, deformed, corroded



Dear Friends , if you want to know more information, welcome to contact with me directly.I will be very glad to receive your inquiry.
