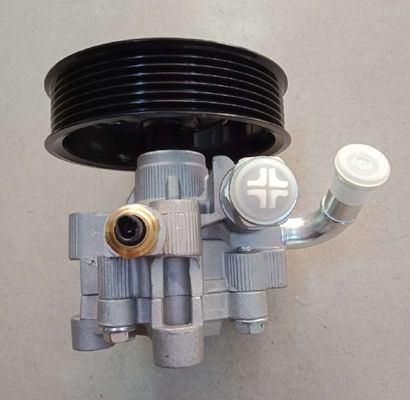

44310-06071 2AZ FE Power Steering Pump , ACV30 M16x1.5 Toyota Camry Steering Pump

Place of Origin CHINA
Brand Name NEWAIR
Certification ST16949
Model Number 44310-06071
Minimum Order Quantity 1pcs
Price $29/PCS
Packaging Details Neutral Packing/Brand Packing/Customized
Delivery Time 1-3work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month
Product Details
Material Aluminum Type Vane Pump
Weight 2KG Engine 1AZ-FE 2AZ-FE
Power Source Hydraulic Power Steering Outlet Thread Size M16 X 1.5
Product Condition New Replacement 44310-33150 44310-06070 44310-33180
High Light

44310-06071 2AZ FE Power Steering Pump


M16x1.5 Toyota Camry Steering Pump


ACV30 Toyota Camry Steering Pump

Leave a Message
Product Description

1AZ 2AZ STEERING PUMP 44310-06071 FOR TOYOTA CAMRY ACV30 2001-2006

Product Description:



3 Year:2001-2006

4 Wholesale Price

5 Ready to ship

6 Brand New



Power steering pump

1. Working principle

There are several types of steering pumps, such as vane, gear and plunger. From the current domestic development point of view, the most widely used is the vane pump. The main parts are stator, rotor, oil distribution plate, blade, pump body and back cover. The pump body is equipped with flow control valve and safety valve. When the pump works, the slide valve has a certain degree of opening, so that the flow rate reaches the specified requirements, and the excess flow rate returns to the smoking chamber of the pump. If the oil circuit is blocked or an accident occurs, so that the system pressure exceeds the maximum working pressure of the pump, the safety valve is opened, the slide valve is fully opened, and all the pressure oil is returned to the oil suction chamber, which plays a safety role in protecting the system.

2. Precautions for use and maintenance

1. Correctly select the grade of hydraulic oil used, otherwise it will affect the efficiency and life of the pump.

2. The hydraulic oil used must be cleaned, checked regularly, and the oil filter on the oil suction path of the oil pump should be replaced regularly. The driver must be equipped with a filter device when refueling to ensure the cleanliness of the oil. And often check, clean or replace the filter device to keep the oil passage open.

3. If the steering pump is not used for a long time, it should not work at full load immediately when restarted, and there should be at least ten minutes of no-load running time.

4. When using, you should always check the steering pump for leakage, whether it is running normally, and whether there is impact or abnormal noise, so as to find and eliminate the fault in time.
